19 Zoll 1HE
Single CPU Server Ultra
Short
|


|

Nur
249mm Tiefe! / auch als Front-IO Version lieferbar
2x 3,5" oder 4x 2,5" SATA
Festplatten
- Intel ATOM oder XEON D CPU
- bis zu 4x 10Gbit und 4x Gbit LAN onboard möglich
- mit Zusatzkarte 8x 10Gbit oder 10x Gbit LAN möglich
Perfekter Server für Firewall ( z.B. pfSense® ),
Gateway etc.
Netzteil 200Watt 80+ Gold
Abmessung: 437x249x43
mm
( BxTxH )
Dieses Gehäuse als
Server
|
|

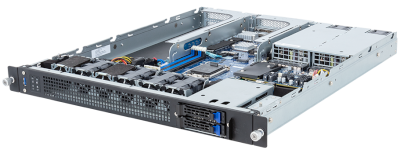

19 Zoll 1HE
Single CPU Server Expert-2
- 2,5"
|

|

nur
287mm Tiefe!
2x 2,5" Hot-Swap
SAS/SATA Festplatten
Netzteil 200Watt 80+ Gold
Abmessung: 437x287x43
mm
( BxTxH )
Dieses Gehäuse als
Server

|
|
19
Zoll 1HE
Single CPU Server EPYC-4 / EPYC-12 | NVMe
|

 |

4x 3,5" / 2,5" NVMe/SAS/SATA Backplane
oder: 12x 2,5" NVMe/SAS/SATA Backplane
16 RAM Bänke für bis zu 2TB RAM
Single AMD EPYC 7xxx CPU mit bis zu 64 CPU Kernen
2x M.2 PCIe 4.0 x4 2280/22110 Slot
1x OCP / Mezzanine Slot für Netzwerk ( SFP+ / RJ-45 )
1x PCIe 4.0 x16 FHHL Slot
1x PCIe 4.0 x16 LPHL Slot
1x PCIe 4.0 x8 LPHL Slot
Netzteil 1+1 800 Watt 80+ Platin
Abmessung: 449x842x44 mm ( BxTxH )
Dieses Gehäuse als
Server

|
|
19
Zoll 1HE

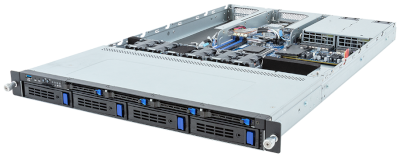

Single CPU Server Expert-4
|

|

4x 3,5" oder 2,5"
Hot-Swap SAS/SATA Festplatten
Netzteil 350 Watt 80+ Platin ( optional 1+1 redundant )
Abmessung: 437x510x43 mm ( BxTxH )
Dieses Gehäuse als
Server

|
|
19
Zoll 1HE Single CPU
Server Expert-8
- 2,5"
|
|

8x 2,5 Zoll ( 2x NVMe x4 / SAS 12Gb/s / SATA 6Gb/s
+ 6x SAS 12Gb/s / SATA 6Gb/s )
Netzteil 340 Watt 80+ Platin ( optional 1+1 redundant )
Abmessung: 483x508x44 mm ( BxTxH )
Dieses Gehäuse als
Server

|
|
19
Zoll 1HE

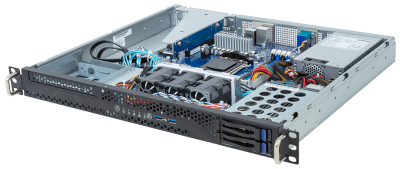

Single CPU Server Short-2/4
Maximum I/O
|


|


(PCIe 4.0 nur mit AMD EPYC 7xx2 Rome CPU möglich! )
nur 429mm
Tiefe! 2 Zusatzkarten in 1HE
optional als Front I/O Version lieferbar
je nach Variante 2x oder 4x
2,5" SATA Festplatten
Bis zu 2 Zusatzkarten
in 1HE.
Netzteil 440 Watt 80+ Platinum ( optional 1+1 redundant )
Abmessung: 437x429x43 mm ( BxTxH )
Dieses Gehäuse als
Server

|
|
19
Zoll 1HE
Single CPU Server Expert-4
Maximum I/O
|
 |


(PCIe 4.0 nur mit AMD EPYC 7xx2 Rome CPU möglich! )
Bis zu 3 Zusatzkarten in 1HE
4x 3,5" oder 2,5"
Hot-Swap SAS/SATA Festplatten
Netzteil 600 Watt 80+ Platinum ( optional 1+1 redundant )
Abmessung: 437x650x43 mm ( BxTxH )
Dieses Gehäuse als
Server

|
|
19
Zoll 1HE
Single CPU Server Expert-8
Maximum I/O
|

|


(PCIe 4.0 nur mit AMD EPYC 7xx2 Rome CPU möglich! )
Bis
zu 3 Zusatzkarten in 1HE
8x 2,5"
Hot-Swap SAS/SATA Festplatten
Netzteil 600 Watt 80+ Platinum ( optional 1+1 redundant )
Abmessung: 437x597x43 mm ( BxTxH )
Dieses Gehäuse als
Server

|
|
19
Zoll 1HE Single CPU
Server Expert-10 | NVMe
- 2,5"
|
 |


(PCIe 4.0 nur mit AMD EPYC 7xx2 Rome CPU möglich! )
8x 2,5"
Hot-Swap SAS/SATA Festplatten
zusätzlich
2x 2,5" NVMe U.2 / SAS / SATA
Netzteil 330 Watt 80+ Gold ( optional 1+1 redundant )
Abmessung: 483x508x44 mm ( BxTxH )
Dieses Gehäuse als
Server

|
|
19
Zoll 1HE Single CPU

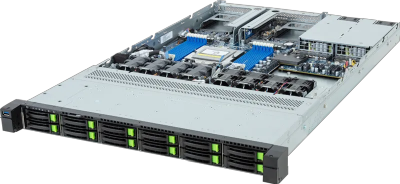

Server NVMe-10 Maximum I/O - 2,5"
|

 |


10x 2,5" Direct Attached NVMe SSD
2x 10Gbit RJ-45 onboard
16 RAM Bänke für bis zu 2TB RAM
Single AMD EPYC 7xxx CPU mit bis zu 64 CPU Kernen
2x M.2 PCIe 4.0 x2 2280/22110 Slot
3x PCIe 4.0 x16 Slot ( 2x FH/HL / 1x LP) für Zusatzkarte
NVMe
Backplane für maximale Performance!
Netzteil 1+1 700Watt 80+ Titanium Redundant.
Abmessung: 437x597x43 mm ( BxTxH )
Dieses Gehäuse als
Server

|
